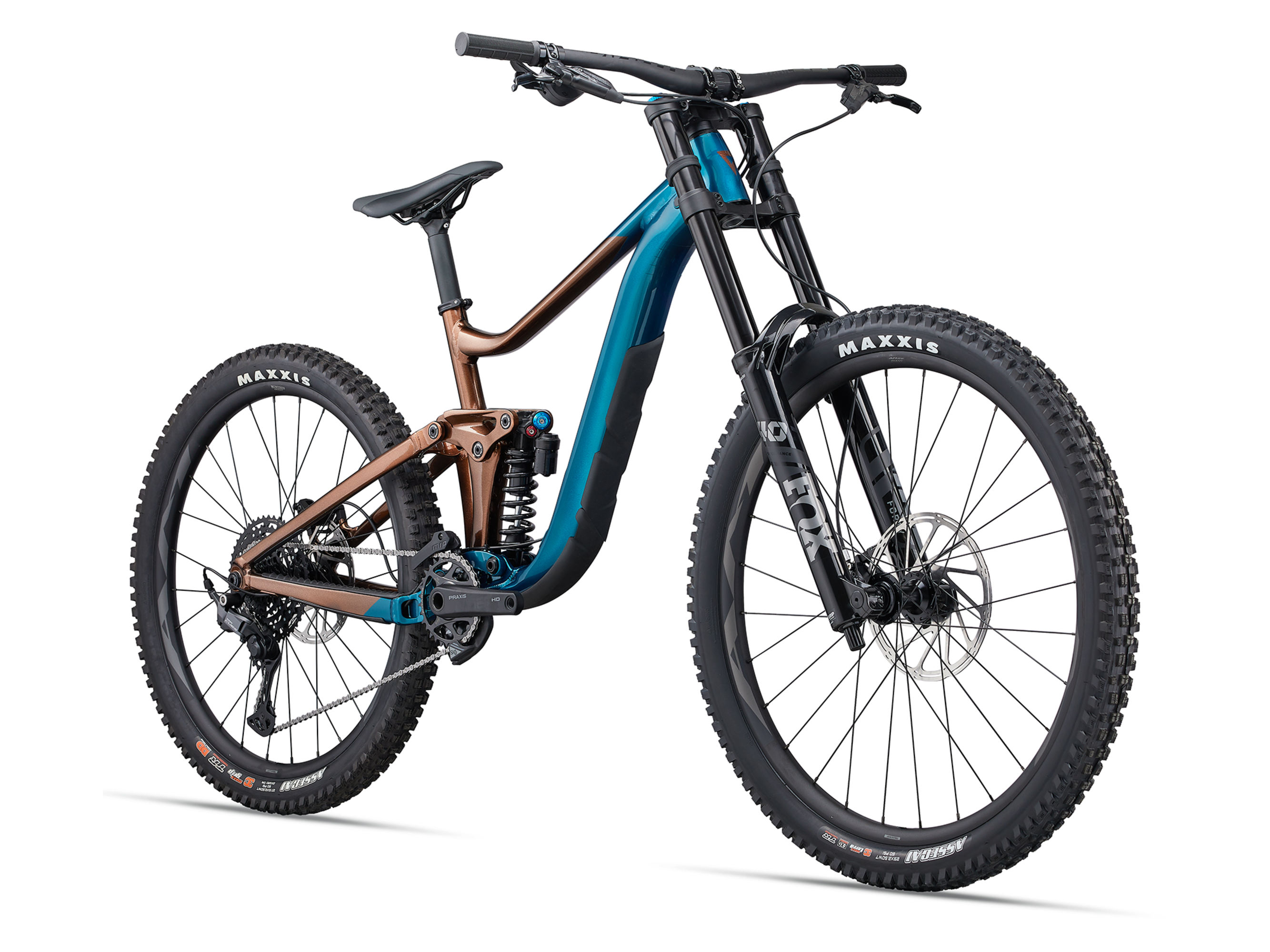

Reign SX
-
Detail
Key Performance Factors
Race-bred suspension
Maestro rear suspension eats up enduro terrain with 165mm of smooth, active rear travel matched with a 190mm travel fork. The trunnion mount rear shock has a longer stroke (65mm over 60mm on the previous generation) while the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall frame weight.
Adjustable enduro geometry
Flip chip adjustability lets you switch between two settings depending on the terrain. You can select a 63.1 or 63.5-degree head angle and corresponding 77.9 or 78.3-degree seat tube angle, resulting in a 25 or 19mm bottom bracket drop (size medium) to fine-tune handling for varying trail conditions and riding style.
Mixed wheel size
A 29-inch front wheel provides speed, stability and front-end control on rough, technical trails. A 27.5-inch rear wheel adds agility and maneuverability to help riders rail corners, pop over features and show off their style.
- SizesM, L, XL
- ColorsSea Sparkle/Hematite

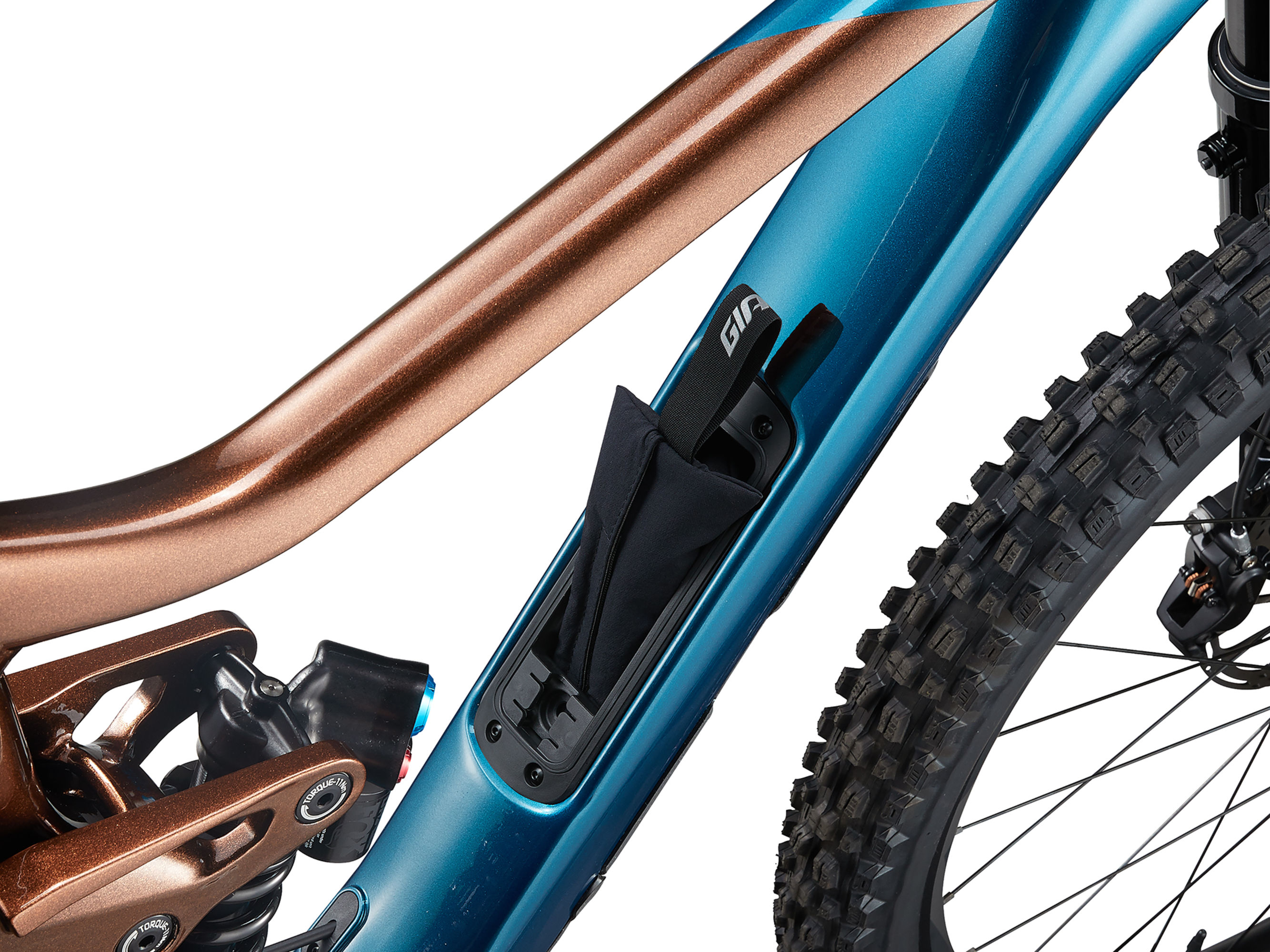

- FrameALUXX SL-grade aluminum front and rear triangles, 165mm Maestro suspension, flip chip, 12x148mm thru-axle, 27.5-inch rear wheel compatible, flip chip - Maestro 3, integrated downtube storage
- ForkFox 40 Performance, GRIP damper, 190mm, 20x110, custom tuned for Giant
- ShockFox DHX2 Performance Elite, 205/65, custom tuned for Giant M:400#, L:450#, XL:500#

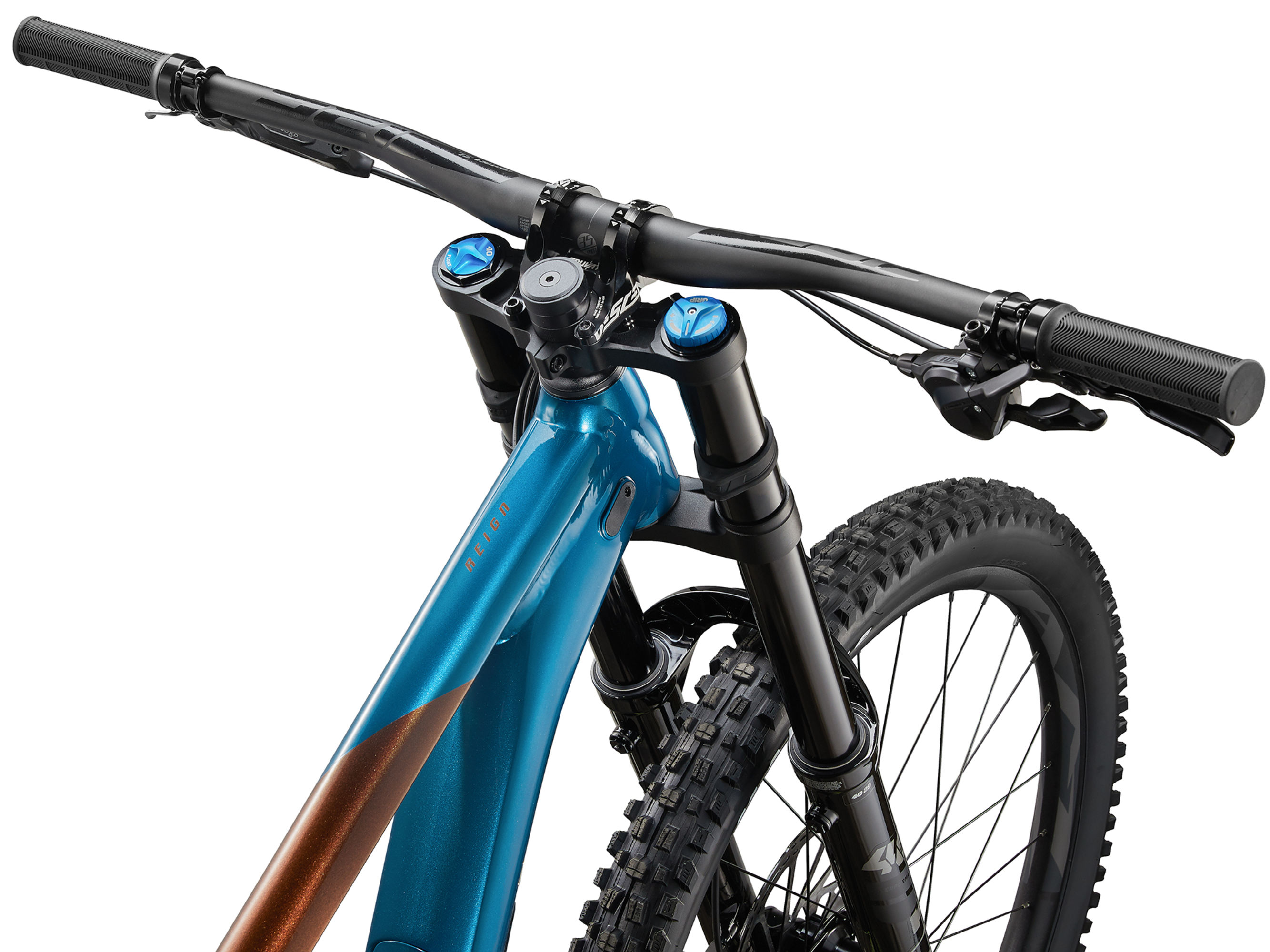

- HandlebarGiant Contact SL TR35, 800x35mm, 20mm rise
- GripsGiant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm
- StemTruVativ Descendant Direct Mount 35, 50mm
- SeatpostGiant Contact, 30.9mm, 400mm
- SaddleGiant Romero
- PedalsN/A
- ShiftersShimano CUES, SL-6000, 1x10
- Front DerailleurN/A

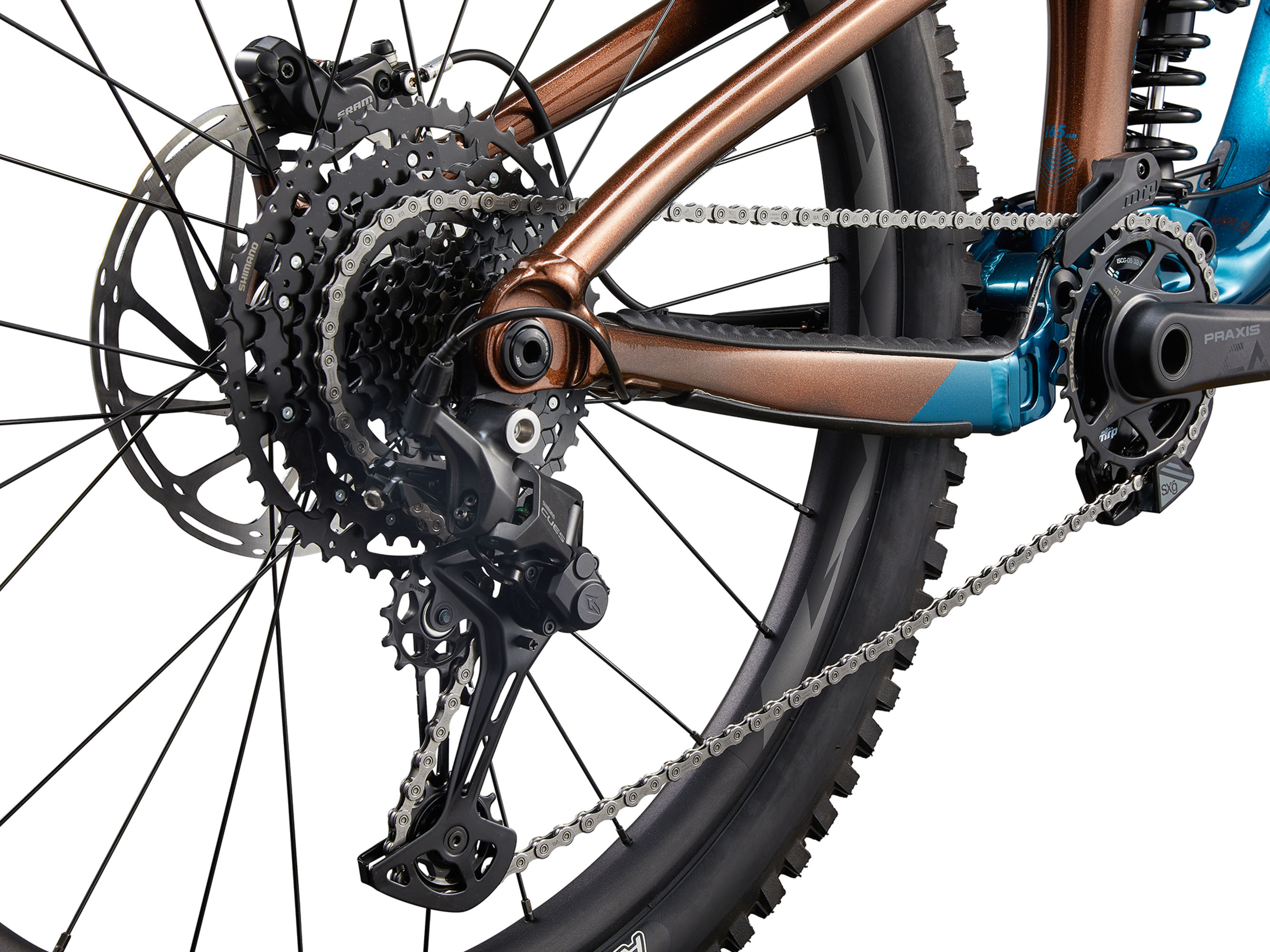

- Rear DerailleurShimano CUES RD-U6000
- BrakesSRAM Code R, hydraulic, CenterLine rotors [F]220mm, [R]200mm
- Brake LeversSRAM Code R
- CassetteShimano CUES, CS-LG300, 11-48
- ChainShimano CUES LG500
- CranksetPraxis Cadet HD M24, 32t, 165mm, 55mm chainline
- Bottom BracketPraxis, press fit
- RimsGiant AM 29, alloy
- HubsGiant Boost, open-race sealed bearing
- SpokesStainless steel
- Tires[F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 27.5x2.5 WT, 3C MaxxTerra, DD, TR tubeless
- Extrastubeless prepared, 2.5" max tire size, 36t max chainring size, MRP AMG CS chain guide
- Weight16.99kg (37lbs 07oz) - Size (M)
-
