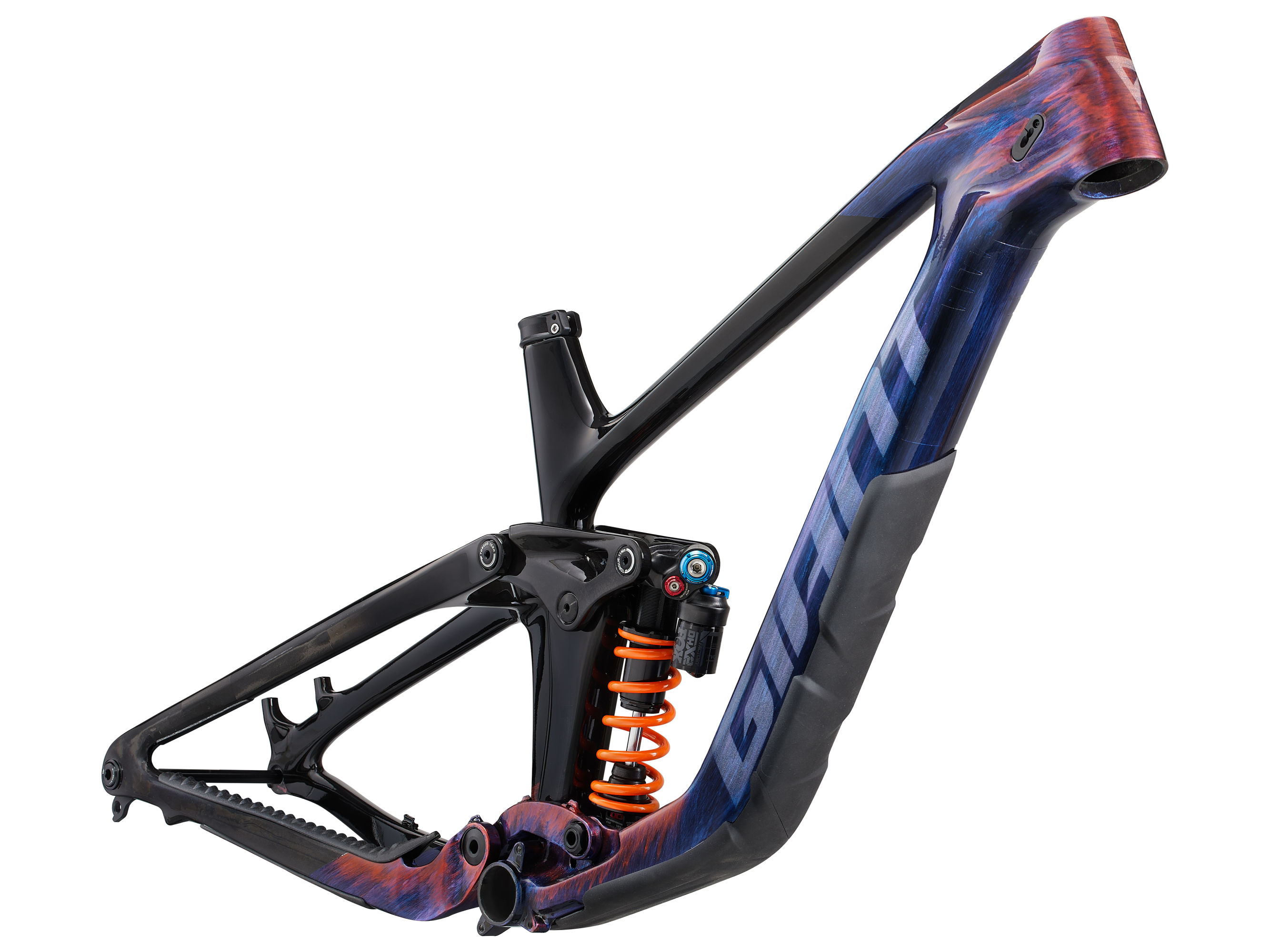

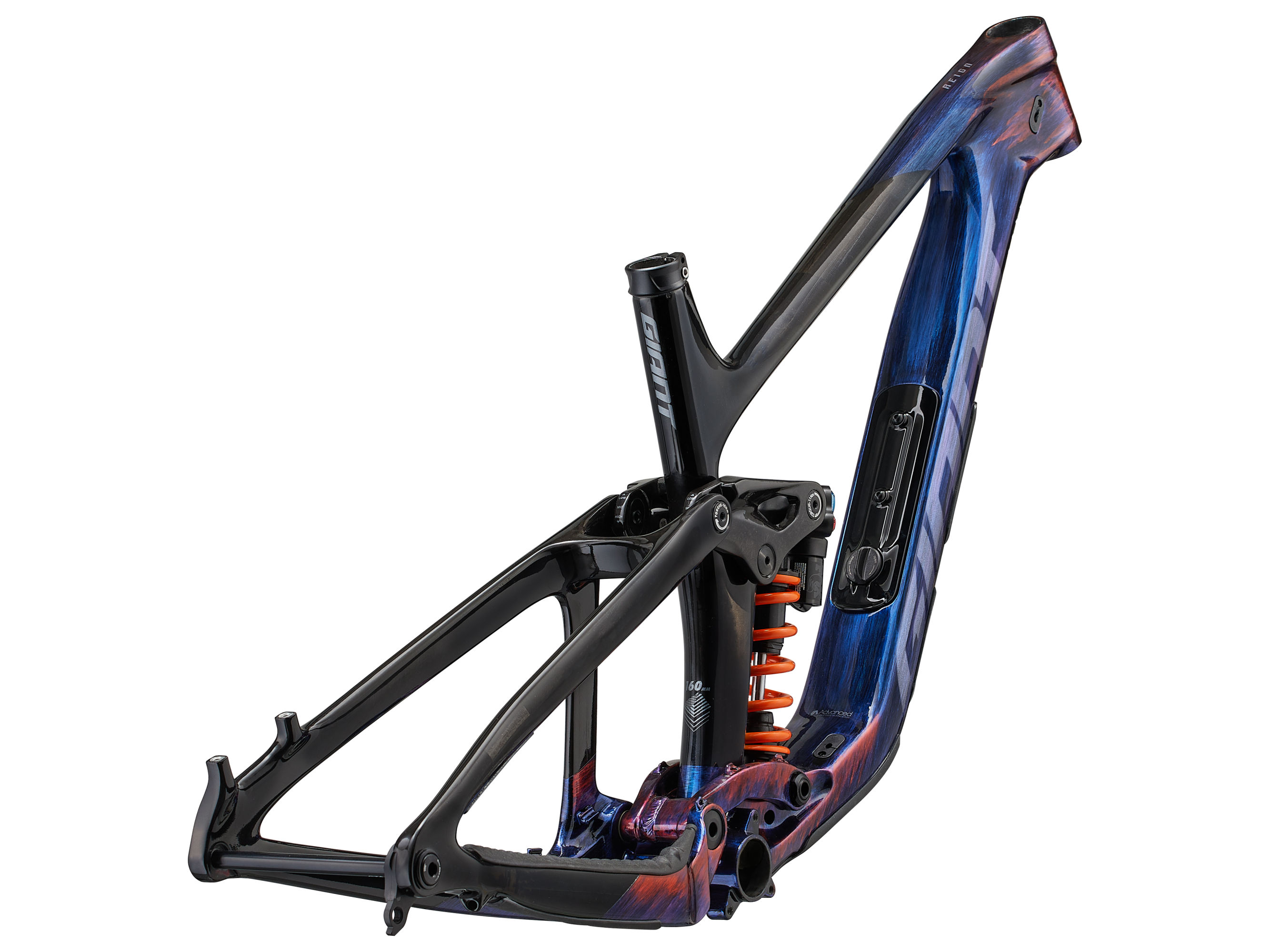

Reign Advanced Frameset
-
Detail
Key Performance Factors
Race-bred suspension
A Maestro rear suspension system with 160mm of travel was developed and tested under the extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke (62.5mm compared to 60mm on the previous generation). And the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall weight.
Adjustable enduro geometry
Flip chip technology lets you switch between three settings depending on the terrain. You can select a 62.47, 63.09 or 63.46-degree head angle and corresponding 77.54, 77.89 or 78.26-degree seat tube angle, resulting in a 29, 24 or 19mm bottom bracket drop (size medium) to fine-tune handling for trail conditions, riding style and rear-wheel size.
Rear wheel options
Riders can choose either a 27.5-inch rear wheel or switch to 29. The larger 29-inch option improves stability and roll-over capabilities, while 27.5 delivers a more agile, snappier feel. It��s a quick and easy way to adjust the bike��s handling and feel.
- SizesS, M, L, XL
- ColorsImpressionism Flash
- FrameAdvanced-grade composite front and rear triangles, 160mm Maestro suspension, flip chip, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, integrated down tube storage
- ShockFox Float DHX2 Factory 2 position adjust, Trunnion mount, 205/62,5, custom tuned for Giant S:425#, M:425# L:450#, XL:475#
- Extras2.5" max tire size, 36t max chainring size, MRP AMG CS chain guide, 3M tailgate protector
- WeightThe most accurate way to determine any bike��s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
-
